History of Centrifugal Casting:
Centrifugal Casting is quite possibly the main kind of casting process in which shape is pivoted quickly about its central hub during casting is solidification or metal is poured. This process was patent in 20 century to form higher specification hollow castings. The principal centrifugal casting machine was designed by a British, A.G. Eckhardt in 1807. This process is widely used for casting hollow pipes, tubes, and other symmetrical parts.
Introduction:
What is Casting Process?
Casting is a manufacturing process during which a liquid material is typically poured into a mold, which contains a
hollow cavity of the specified shape, and then allowed to solidify. The
solidified part is additionally referred to as a casting, which is ejected or
broken out of the mold to finish the method. Casting materials are usually
metals or various time setting materials that cure after mixing two or more components together;
examples are epoxy, concrete, plaster, and clay. Casting is most usually used for constructing complex
shapes that would be diversely difficult or uneconomical to compose by other
methods.
Different types of Casting Process:
- Die Casting
- Investment
Casting
- Centrifugal
Casting
- Gravity Die
Casting
- Vacuum Die
Casting
- Squeeze Die
Casting
- Sand Casting
- Lost Foam
Casting
- Low Pressure
Casting
What is Centrifugal Casting?
Centrifugal Casting gives
high material adequacy and is the metal casting process of choice for jet motor
blower cases, petrochemical heater tubes, numerous military and defense
segments, and different applications requiring high dependability.
 |
| Fig. Types of Casting |
In centrifugal casting liquid metal is filled into the rotating die with a pouring bucket, which can revolve on an upward hub (vertical centrifugal casting) or even hub (horizontal centrifugal casting) dependent upon the design of the part. Ring and chamber type shapes are made by vertical centrifugal casting while rounded shapes are made by horizontal centrifugal casting. Either process can be utilized to deliver numerous parts from a single casting cycle.
When to use Centrifugal Casting Process?
- For Symmetrical shapes with multiple products.
- Generally used when the final product required the sand casting material properties are inadequate.
- Can be used where centerline shrink is an issue using other casting processes.
- Having Limited I.D. features on the casting products.
- Used where Large parts required of up to 135,000 lbs. (61,235 kg) or more are needed.
- More precise other diameter detail and lower machining costs are desired.
Types of Centrifugal Casting:
There are three types of Centrifugal Casting
- True Centrifugal Casting
- Semi Centrifugal Casting
- Centrifuge Casting
True Centrifugal Casting:
- True centrifugal casting is frequently known as centrifugal casting is a process of creating symmetrical round hollow parts.
- This interaction utilizes no centers and the even hollow area is made by true centrifugal action.
 |

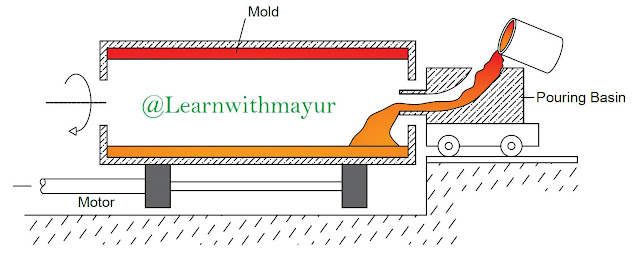

| Fig. True Centrifugal Casting Side View |
- In this process, the mold revolves around the horizontal or vertical axis. Mostly the mold is rotated about the horizontal axis and the molten metal introduce from an external source.
- The centrifugal force acts on the molten metal which forces it at the outer wall of molds.
 |
| Fig.True Centrifugal Casting Front View |
- The mold rotates until the whole casting solidifies. The slag particles are lighter than metal thus separated at the central part of the casting and removed by machining or other suitable processes.
- This process utilized to create hollow pipes, tubes, hollow bushes, etc.
- which are axisymmetric with one concentric hole.
Semi Centrifugal Casting:
- This process is utilized to make large size axisymmetrical objects.
- In this process mold rotated along the vertical axis and is placed horizontally.
- A core is placed at the center of the casting which is used to cast hollow sections.
- When the mold rotates, the outer portion of the mold die by purely centrifugal action and as the liquid metal.
 |
| Fig. Semi - Centrifugal Casting |
- Approaches toward the center, the centrifugal component decreases, and the gravity component increases.
- Thus a core is placed at the center to create the hollow cavity at the center without centrifugal force.
- In this process centrifugal force is used for a uniform filling of axisymmetrical parts Gear blanks, flywheel, etc are made by this process.
Centrifuging Casting:
- In this process there is several mold cavities connected with a central sprue with radial gates.
- During Solidification, this process uses higher metal pressure.
- It is utilized to cast shapes which are not axisymmetrical.
- This is only suitable for small objects.
 |
| Fig. Centrifugal Casting |
Working Principle:
- Centrifugal force is working on the principle of a rotating component, the mold is rotated along the specific axis after or while pouring the molten metal to get the desired shape.
- In this process, when the molten metal is poured into it the mold is rotated about its central axis.
- A centrifugal force acts on molten metal due to this rotation, which forces the metal at the outer wall of mold.
- The mold revolves until the whole casting solidifies.
- The slag oxide and other incorporation being lighter gets isolated from the metal and isolate towards the middle.
Advantages of Centrifugal Casting:
- It provides close metal and high mechanical properties.
- Unidirectional solidification can acquire up to a specific thickness.
- It can use for large-scale manufacturing.
- No cores are needed for cast empty shapes like tubes etc.
- The gating system and runner are completely eliminated.
- All the pollution like oxide or other slag particles, isolated at focus from where it can without much of a stretch eliminate.
- It required a lower pouring temperature hence save energy.
- Lower casting imperfections because of uniform solidification.
Disadvantages of Centrifugal Casting:
- A restricted design can be made. It can project just symmetrical shapes.
- High gear or arrangement cost.
- It isn't reasonable for each metal. Higher maintenance cost required.
- High-ability operator required.
- In this casting process, solidification time and temperature dissemination are hard to decide.
Applications of Centrifugal Casting:
- It is broadly utilized in airplane enterprises to project rings, spines, and blower projecting.
- It is utilized for cast Steam turbine bearing shells.
- Roller for steel moving factory is another illustration of centrifugal casting.
- It is utilized in car enterprises to project gear clear, tube-shaped liners, cylinder rings, and so forth
- It is utilized to project heading.
- This cycle used to project change gear parts utilized in electronic ventures.
